6 iDS
MultiOne 6 series loaders are the first in the Heavy duty range of loaders.
The incredible small size of the MultiOne 6 series is much more extraordinary if compared to the lifting capacity of these small but powerful mini loaders. With a lifting capacity of over 1100 kg they can do serious work, but they’re compact enough to make it easy to transport them to the job site. These mini loader weigh only 1400 kg’s making it suitable to be transported with ease from site to site in a very cost effective manner.
These compact loaders are perfectly suited for tight spaces, to be easily transported and to drive the most attachments for trenching, digging and excavation, cleaning, landscaping, construction and farming or agriculture. The 6 Series multifunction loaders are also ideal companions for DIY tasks, farms and municipal maintenance, clean-ups and rubble removal, all terrain forklift applications and general loading purposes.
The 6 series, thanks to the HI-Flow System, is compatible with most of the hydraulic attachment offerings of MultiOne . Come as standard with the new ACI system that allow the MultiOne operator to control the attachments movements without the need of separate control.
6 iDS Series Plus:
- Compact dimensions
- Great lifting height and capacity
- New Multi function joystick
- 60 l/min (15.8 GPM) output flow
- High torque (90Nm)
- Up to 23 km/h
- Poclain direct drive wheel motors
- Stage V and Tier 4 Final emission compliant
- Big tires available
- Very versatile
Serienausstattung
LCD-Grafikdisplay mit programmiertem Service
Graphische LCD-Anzeige mit programmierter Kontrolle ( Geschwindigkeit, Betriebsstunden, Kraftstoffstand, Wartungsanzeige, Beleuchtungskontrolle und andere insgesamt 14 Funktionen.

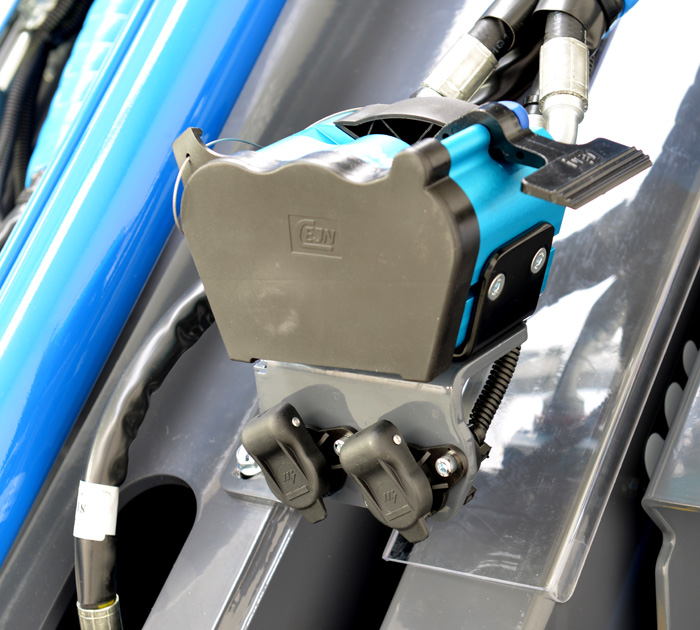

Hydraulischer Mehrkonnektor
Es handelt sich um ein innovatives Kupplungssystem für Frontbefestigungen, das den spannungsfreien Anschluss der Hydraulikleitungen in wenigen Sekunden ermöglicht.
Dbs (Dynamicblocksystem)
Es ist ein Gerät, das wie ein Differential funktioniert. Wenn es aktiv ist, hinterlässt das Fahrzeug beim Lenken keine Spuren auf dem Boden (ideal für die Grünpflege). Besonders geeignet für den Einsatz auf unebenen Flächen.
Hi-Flow System
Zusätzliche Pumpe, die den Ölfluss am Auslass erhöht.
Radialkolben-Fahrmotoren
Hochleistungsfähige Radialkolben-Hydraulikmotoren mit Nockenwellen und hohem Drehmoment.
Selbstnivellierender Doppel-H-Teleskopausleger
Er vermittelt extreme Stärke und eine gute Sichtbarkeit der Last, was eine größere Hebekapazität ermöglicht.
Teleskopausleger von MultiOne:
- Es verfügt über eine erhebliche Längenausdehnung, die es ermöglicht, die entferntesten Punkte und auch nicht leicht zugängliche Bereiche zu erreichen, sowie über große Deponiehöhen und Reichweite
- Er verfügt über spezielle Antifriktionsbeläge, die den Betrieb, die Haltbarkeit und die Wartungsfreiheit gewährleisten
- es gewährleistet jederzeit eine hervorragende Sicht nach vorne, auch beim Bewegen und Heben
- Dank der Selbstnivellierung ist er ideal zum Heben schwerer Lasten geeignet, da er die Last auf dem Boden hält und der Fahrer nicht ständig die Position mit dem Joystick korrigieren muss.
ROPS- + FOPS-Schutz
Das ROPS (Rollover Protection System) ist ein System oder eine Struktur, die den Bediener vor Verletzungen durch Umkippen oder Überschlagen der Maschine schützen soll.
Das FOPS (Falling Object Protection System) ist nach ISO 3449 geprüft und zertifiziert und schützt den Bediener vor herabfallenden Gegenständen. In einigen Ländern und für einige Arbeiten kann das FOPS vorgeschrieben sein. Bitte wenden Sie sich an Ihren MultiOne-Händler vor Ort.
2 vordere Arbeitsleuchten
2 Arbeitsscheinwerfer vorne, zur perfekten Beleuchtung des vorderen Arbeitsbereiches
4WD hydrostatische Direktantriebsmotoren
4WD hydrostatische Direktantriebsmotoren, Proportionalservo
Multifunktions-Joystick
Der elektronische Multifunktions-Joystick ermöglicht eine einfache und präzise Steuerung des Auslegers und der Anbaugeräte.
Hydraulikölkühler
Hydraulic circuit oil cooling system
Feststellbremse, mechanisch
Feststellbremse, mechanisch
Technische Daten
| 6 iDS | |
|---|---|
| Hublast (Maschine gerade – mit Heckgewicht) | 1120 kg |
| Strom | 25 PS |
| Geschwindigkeit | 11,5 – 23 km/h |
| Durchflussmenge | 60 l/min |
| Lift Höhe | 2,92 m |
| Druckkraft (c) | 2050 kgf |
| Gewicht | 1470 kg |
(*) Es handelt sich um die maximale Last, die bei gerader Stellung der Maschine, mit Rückengewichten und auf festem, ebenem Untergrund gerade vom Boden gehoben werden kann. Ausleger nicht ausgefahren. Inklusive Gewicht des Anbaugeräts. Die maximale Hubkapazität ist der angegebene Wert abzüglich des Gewichts des Anbaugeräts.
Serienmäßige Ausstattung
DBS (Dynamic Block System)
It is a device that operates as a differential. When active, the vehicle, when steering, leaves no trace on the ground (ideal for green care). Particularly suitable for use on uneven surfaces.
Ergonomic fully adjustable suspension heated seat
Ergonomic heated seat with armrests and seat belt. Ideal for cold climates, it significantly increases the comfort of the machine.
Electronic Throttle Control
ETC – Electronic Throttle Control
HI-Flow
Additional pump that increases the outlets oil flow.
Hydraulic multiconnector
It is a innovative coupling system for front attachments that allow the connection of the hydraulic lines in a few seconds without stress.
Hydraulic oil cooler
System for cooling the hydraulic circuit oil
LCD graphic display with programmed service
LCD graphic display with programmed service (tachometer, hour meter, fuel gauge, maintenance light, light indicator and other 14 indicators)
Multi-disk parking brake
Multiple Disc Brakes spring loaded and hydraulically released.
Multi function joystick
The multi-function electronic joystick allows an easy and precise control of the boom and attachments.
Radial Piston Wheel motor
High performance, high torque cam-lobe radial-piston hydraulic motors.
ROPS-FOPS Level I
The ROPS (Rollover Protection System) is a system or structure intended to protect the operator from injuries caused by machine overturns or rollovers.
The FOPS (Falling Object Protection System) is tested and certified in accordance with ISO 3449 and protects the operator against falling objects. In some countries and for some works the FOPS may be mandatory. Please consult your local MultiOne distributor.
Self-levelling double-H telescopic boom
It conveys extreme strength and high visibility of the load, allowing for a greater lifting capacity.
MultiOne’s telescopic boom:
- it has a significant extension in length, which allows to reach the farthest points and also not easily accessible areas, as well as great dumping heights and outreach
- it has special anti-friction pads, which ensure operation, durability and lack of maintenance
- it assures an excellent front visibility at any time, even while moving and lifting
- thanks to the self-levelling, it is ideal for lifting heavy loads since it keeps the load leveled to the ground, preventing the operator from continuously correcting the position with the joystick.
Unbreakable Body Panels
The resistance and flexibility of the compound used on the new body cover let the panel absorb shocks, deforms and go back to original shape.
2 front working light
2 front working light to illuminate the working area
2 speed
Electro-hydraulic speed regulation.
4WD hydrostatic Direct Drive motors
4WD hydrostatic Direct Drive motors, proportional servo
Aufsatz
Optionen
Attachment coupling plate for rear mounting
It is used to assemble attachments on the rear of the machine.
Automatic locking plate
On the automatic attachment plate the locking pins move hydraulically and are operated from cockpit.
This way the driver can stay on the seat when coupling and disconnecting non-hydraulic attachments.
Aux hydraulic outlets
Additional hydraulic outlets (front and/or rear).
Backup warning beeper
It help keep everyone safer during MultiOne machine operation.
Beacon light
Beacon light ensures more visibility and safety.
Driver area cover
Covers the machine interior, protects against rain, snow, etc.
Engine block heater
It is an ideal device for cold temperatures.
The system keeps the engine at an optimal temperature for easy starting with very cold climates.
Flat Face coupling kit
Adaptor to be put on the multiconnectors, in order to connect standard flat face connections.
Floating boom valve
It allows the mounted attachments to follow the contours of the land perfectly. Ideal for applications in agriculture and in the care of the green areas.
Fully enclosed cab (glass)
This is the best insulation system for the driver to protect him from cold, wind, rain, and snow.
Easy access thanks to the large door and the compass glass opening.
Heating system
Three-way heating with adjustable air flows and temperature.
Left protection bar for operator
A side-protection bar that has been certified and awarded as a techincal safety innovating system. It is placed on the left side of the machine to protect the operator from falling out of the vehicle. It can be locked and unlocked very quickly thanks to a special mechanism.
LED road lights
LED road lights (front and rear) to illuminate the road, turning light, beacon, mirrors.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
Rear bull bar
Rear bull bar.
Rear hydraulic outlets
They are used to mount on the rear side attachments that need hydraulic supply. The rear outlets are controlled by the control panel.
Rear outlets
They are used to mount on the rear side attachments. The rear outlets are controlled by the control panel.
Rear side weights
Rear side weights are used to increase the lifting capacity of the machine. It’s possibile to mount them also with other rear weights mounted.
Two kit (80 kg per side, 160 kg total) can be mounted, screw is required.
Rear weights
Backweights are used to increase the lifting capacity of the machine. They are to be mounted on the rear of the machine.
Skid tires
Smart Cabin
The most competitive solution for the operator who wants to improve working conditions thanks to a light cabin which limits the discomfort created by weathering.
Snow chains
MultiOne snow chains improve traction on snow.
Tie down bracket on wheel hub
The tie down brackets mounted on wheel hub makes easier to tie down the machine on a trailer.
Torque divider
It acts on all four wheels simultaneously to attain maximum performance. Traction even on impossible grounds with mud or snow.
Tractor Tires
Trailer coupling
Rear tow hook with double connection: with tow ball (car type) or tow pin (agricultural type).
Turf tires
Warning and safety lights for road travel (w/mirrors)
Front and rear lights, brake lights, turning lights, beacon, mirrors. In certain countries this equipment enables road traffic registration – requirements vary in different countries.
Wheel spacer
Spacers are used to make the machine wider and increase its stability.
12V rear electric socket
12 Volt rear electric socket to connect the attachments.
3 aux working led lights
3 auxiliary working LED lights for more visibility.
LED Technology Plus:
- High service life
- Minimal energy consumption
- Wear-free and maintenance-free
- Higher effective visibility
- Dust and water-resistant
- Compact sizes
- Rapid response times
